Store / RC-PPG -Big Scale RC paragliders- / Aranea Trike and wing as complete set

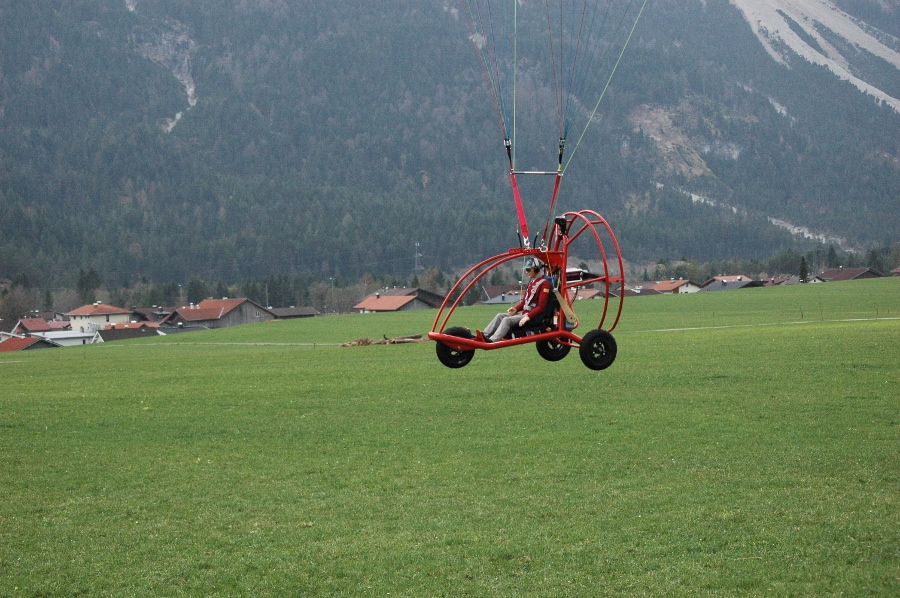

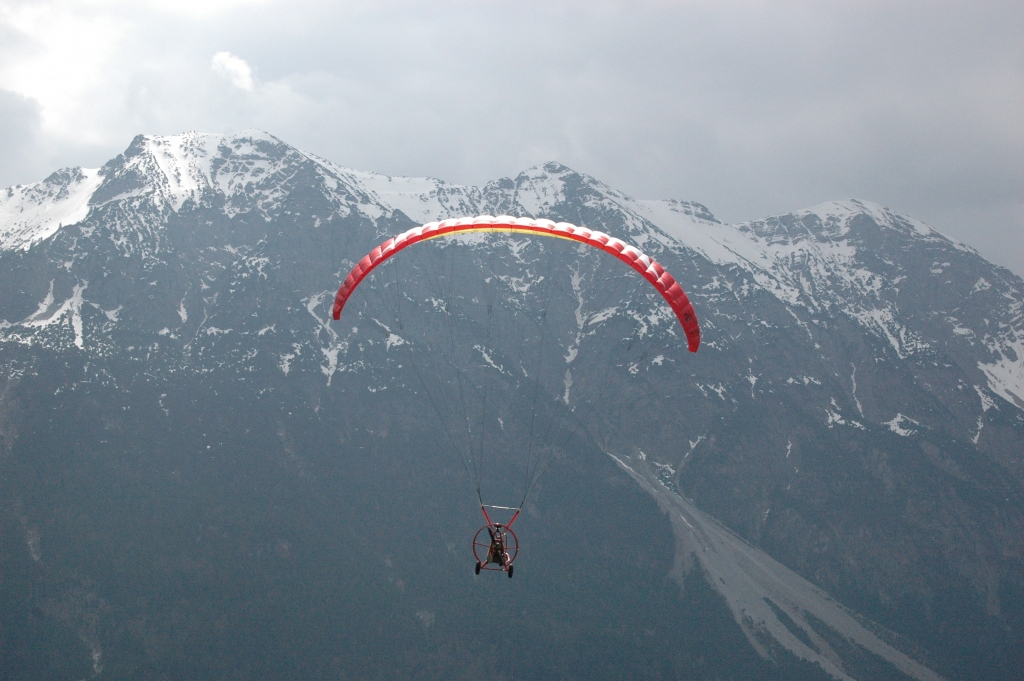

Aranea Trike and wing as complete set



Trike and wing in scale 1:2
Set includes the following Items:
Trike, painted in red.
Wheels Ø200 mm.
Electric brushles motor Dualsky XM9015MR-7HD.
Esc Jeti 99A.
Prop 21*12 SEP
2x Servo Seiko Tonegawa PS050.
Pilot seat.
Switch and wireharnas.
Wing  Aranea 6.0

Technical details:
Measurements Trike:
885x600x730 mm (lxwxh).
Weight 14 kg.

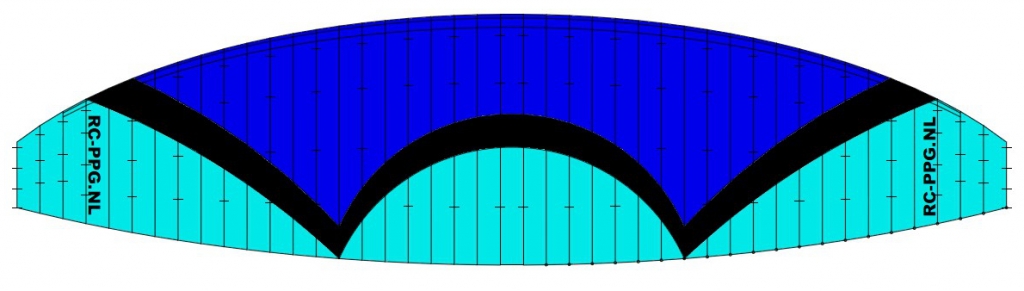

Details Wing:
Fabric, Skytex 27.
Cell number =  43
Flat area =   6.95 m2
Flat span =   6 m
Flat A/R =  5.07
Projected area =   6.11 m2
Projected span =   4.89 m
Projected A/R =  3.92

Necessary components to complete the model:
Receiver (preferably with 40 cm antennas).
Lipo 3S 3200 mAh for receiver and servos
2x Lipo 5S 8000 mAh for Motor.
5V 3A BEC

Remarks.
The Trike will be made on order only.
Please contact me first for the details and your special wishes.




€ 2795,00
